Clean Type Electric Hoist Crane
The clean type electric hoist crane, a newly developed special crane by ANSON, is suitable to be used in the clean environment, such as biological engineering, food, micro electronics, medical equipment, etc.
ANSON Clean Type Electric Hoist Crane Features
- Clean, wear resistant, anti static design. It does not produce the dust and don’t absorb dust.
- Low failure rate, high operating reliability.
- A wide range of debugging, precise positioning.
- Maximate the available space.
- Smooth running, beautiful appearance, patented product.
ANSON Clean Type Electric Hoist Crane Configuration
- Adopt stainless steel hook, the German design standard. Beautiful appearance, small size, large lifting capacity.
- The chain of our clean electric hoist crane adopts “three protection” shield, is capable of expansion and contraction.
- The outer shell is made of whole die cast aluminum. Light weight, high strength, good heat dissipation.
- The motor adopts invisible design, small size.
- Our clean type electric hoist crane is drove by sterile reduction motor, and is filled with food grade industrial gear oil. Noise-free.
- The driving wheel adopts high strength engineering plastic, wear resistance, and don’t produce dust.
- Horizontal guide wheel can positioning precisely, chrome plated driving medium, don’t adhere to dust.
- The frame of Anson clean type electric hoist crane is made of stainless steel material, high strength.

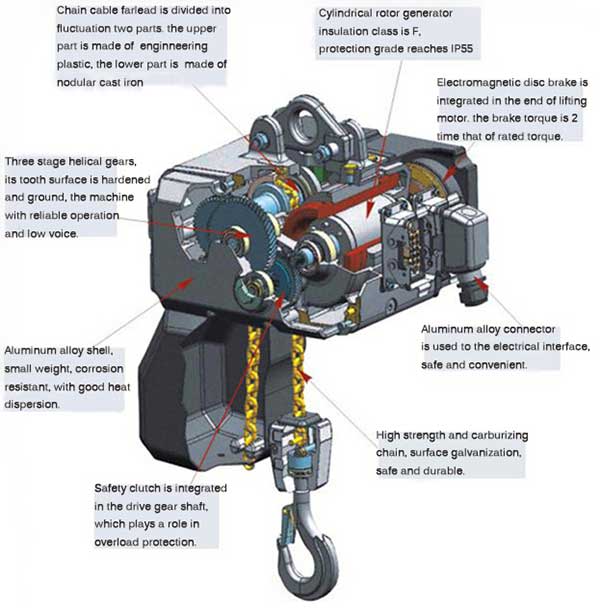

Clean Type Electric Hoist Crane Structure
ANSON Clean Type Electric Hoist Crane Specifications
380V / 50HZMachine Model | Load/Working Level | Lifting Speed(m/min) | Chain Number | Power(Kw) | |||
---|---|---|---|---|---|---|---|
1BM | 1Am | 2m | 3m | ||||
NL1 | 250 | 2.0/8.0 | 1 | 0.09/0.36 | |||
NL1 | 500 | 1.0/4.0 | 2 | ||||
NL2 | 2.0/8.0 | 1 | 0.18/0.75 | ||||
NL2 | 1.0/4.0 | 2 | |||||
NL2 | 2.0/8.0 | 1 | |||||
NL2 | 1.0/4.0 | 2 | |||||
NL2 | 400 | 2.0/8.0 | 1 | ||||
NL2 | 800 | 1.0/4.0 | 2 | ||||
NL2 | 500 | 2.0/8.0 | 1 | ||||
NL2 | 1,000 | 1.0/4.0 | 2 | ||||
NL3 | 2.5/10 | 1 | 0.45/1.90 | ||||
NL3 | 1.25/5.0 | 2 | |||||
NL3 | 650 | 2.5/10 | 1 | ||||
NL3 | 1.25/5.0 | 2 | |||||
NL3 | 800 | 2.5/10 | 1 | ||||
NL3 | 1,600 | 1.25/5.0 | 2 | ||||
NL3 | 2.5/10 | 1 | |||||
NL3 | 2,000 | 1.25/5.0 | 2 |
460V/60HZ
Machine Model | Load/Working Level | Lifting Speed(m/min) | Chain Number | Power(Kw) | |||
---|---|---|---|---|---|---|---|
1BM | 1Am | 2m | 3m | ||||
NL1 | 250 | 2.0/8.0 | 1 | 0.11/0.45 | |||
NL1 | 500 | 1.0/4.0 | 2 | ||||
NL2 | 250 | 2.0/8.0 | 1 | 0.18/0.75 | |||
NL2 | 500 | 1.0/4.0 | 2 | ||||
NL2 | 320 | 2.0/8.0 | 1 | ||||
NL2 | 630 | 1.0/4.0 | 2 | ||||
NL2 | 400 | 2.0/8.0 | 1 | ||||
NL2 | 800 | 1.0/4.0 | 2 | ||||
NL2 | 500 | 2.0/8.0 | 1 | ||||
NL2 | 1,000 | 1.0/4.0 | 2 | ||||
NL3 | 500 | 2.5/10 | 1 | 0.45/1.90 | |||
NL3 | 1,000 | 1.25/5.0 | 2 | ||||
NL3 | 630 | 2.5/10 | 1 | ||||
NL3 | 1,250 | 1.25/5.0 | 2 | ||||
NL3 | 800 | 2.5/10 | 1 | ||||
NL3 | 1,600 | 1.25/5.0 | 2 | ||||
NL3 | 1,000 | 2.5/10 | 1 | ||||
NL3 | 2,000 | 1.25/5.0 | 2 |
