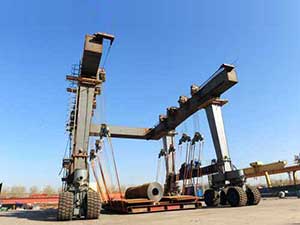

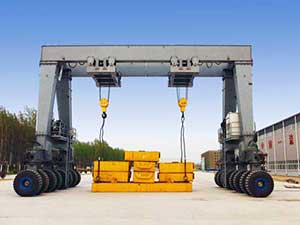

RTG crane
A Brief Introduction to RTG Manufacturer
We can supply RTG (Rubber Tyre Gantry Crane) and RMT(Rail-Mounted Gantry Crane) loading capacity from 5tons to 4000tons. The products,adopting"Mechanical-Electronic-Hydraulic"technology, have achieved the advanced level of the same products in the world. Gantry crane series are mainly applied in the lifting,transporting and loading of passenger transport special railway line,concrete box girder in the bridge project etc.

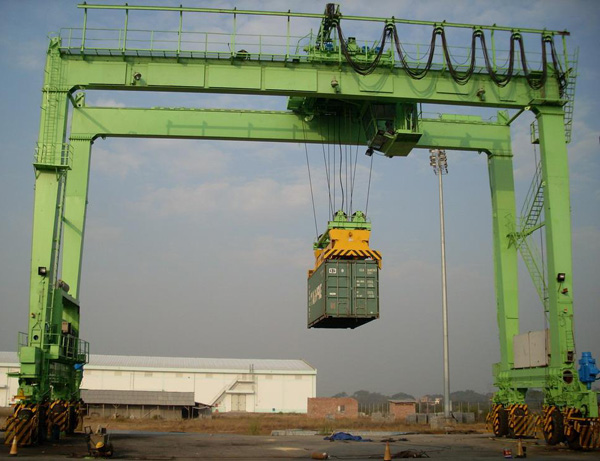

Rubber Tyre Quayside Container Gantry Crane Parts
Rubber tyre quayside container gantry crane (RTG) generally includes the following units: steel frame, hoisting mechanism, minimum slewing mechanism, and spreader anti-shaking mechanism, crane travel mechanism, turning mechanism, trolley traverse mechanism, container spreader, diesel generating sets, electrical equipment and other accessory equipments for safety.
If you have more detail requirements,we can customize the gantry crane for you and supply the design concept to the manufacturing & assembling and test & experiment and drawing according to your requirements.
 |
 |
ANSON RTG Crane Features:
- Name:Rubber Tyre Gantry Crane
- Standard: Europe
- Structure:Truss or Box
- OEM
- Capacity: Large Tonnage
- Usage: Container, port and Precast beam loading
- 12 wire bidirectional anti sway system RTG crane
- PLC control
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| Capacity of Spreader | T | 30.5 | 35 | 40.5 | ||
| Working Duty | A6 | A6 | A6 | |||
| Span(m) | S | 23.47 | 23.47 | 23.47 | ||
| Base(m) | B | 7.4 | 7.4 | 7.5 | ||
| Lifting Height(m) | H | 15.4 | 15.4 | 18.2 | ||
| Speed | Hoisting | With Full Load | m/min | 12 | 12 | 23 |
| Only with Spreader | 24 | 24 | 48 | |||
| Trolley | 70 | 70 | 70 | |||
| Travelling | With Full Load | 45 | 45 | 45 | ||
| Only with Spreader | 90 | 90 | 90 | |||
| Main Dimension(mm) | L | 25370 | 25370 | 25395 | ||
| H1 | 22030 | 22334 | 25134 | |||
| L1 | 905 | 905 | 905 | |||
| L2 | 950 | 950 | 975 | |||
| Total Power of diesel motor | KW | ～305 | ～305 | ～400 | ||
| Total Power of genetator | KVA | ～518 | ～595 | ～720 | ||
| Max Working Load of Wheel | KN | 273 | 287 | 320 | ||
