light gantry crane
Do you have any height limitations on the top of the gantry crane? Do you want fixed or adjustable height and width range? Do you need to have a relatively light gantry crane, or is overall price and durability your concern?
With these questions answered, we can propose the gantry crane system that will work perfectly for you. When ordering, please remember we sell a broad line of material handling equipment including. Anson has the fixed height protable gantry crane for your application. Light gantry cranes are a easy and economical way to lift materials anywhere in your facility.

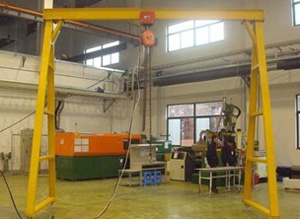

Light gantry crane or small gantry crane is widely applied to supermarkets, factories, farms and stations. Thanks to its design and system, it is well received among customers. We are able to manufacture light gantry crane according to your dimensions.
Portable Gantry Crane:
- Height adjustable
- Up to 6 meter span
- Lifting Weights: within 2,000 kg
- Application: substitute of cantilever crane, warehouse and workshop without power supply
- Design Standards: national standard and non-national standard
Lifting weight(kg) | 250 | 500 | 1000 | 2000 | 3000 | 4000 | |||
---|---|---|---|---|---|---|---|---|---|
Working duty | A3-A6 | ||||||||
Span(Ft) | 8,10,15,20,25,30 | ||||||||
Lifting height(Ft) | |||||||||
6-39 | |||||||||
Lifting speed(Ft/Min) | 39 | 26 | 26 | 24 | 23 | 19 | |||
Power supply | 380V 50HZ 3PHS(or according to your demand) |
Features and Benefits of Light Gantry Crane:
- Crane Available in capacities up to 5 ton and spans up to 33 feet.
- Square tubing uprights, knee braces, and channel base provide for stable lifting and movement.
- Bolted beam to upright connection ensures safety.
- Molded phenolic casters are standard and provide for easy movement.
- Phenolic wheel.
