Single Girder Crane

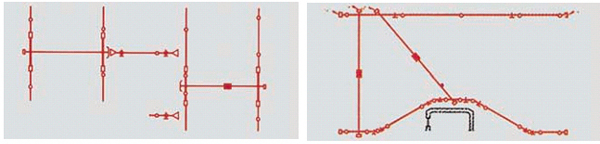

The Benefits of Single Girder Crane
The benefits of KBK classic single-girder suspension cranes include latching devices that allow direct transfer of the hoist trolley between the crane and a suspension monorail. Flexible ball and socket connections between the crane girder and end carriages enable single-girder cranes to operate on tracts that are not parallel.

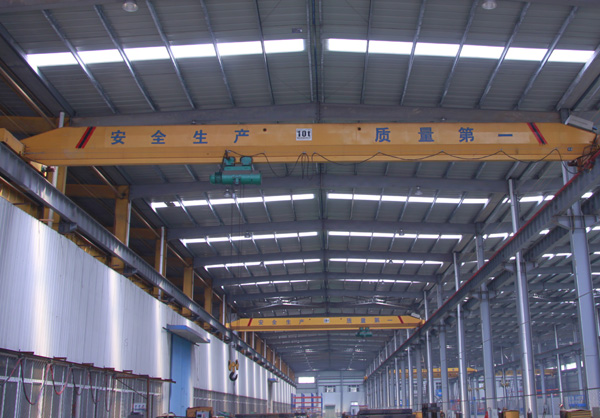

Single Girder Crane Manufacturers
Single Girder Suspension Crane
Advantages and Features of Single Girder Crane:
- Use optimized computer design box type girder as main support girder.
- Motor protection class is IP54, F class insulation and equipped with overload protection equipment. (optional)
- Specially designed gearbox for crane, adopts oblique gears, self lubrication.
- Control stick could be connected with trolley, freely move on main girder separately and can also control the travelling speed according to the different depth of buttons.
- Longer utility life-span and higher working efficiency.
- Travelling speed adopts nonpolar speed adjustment control which result in stable travelling and small sway of crane.
Working Principles of Single Girder Crane:
- Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself.
- Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
- Control Method: Room control or remote control to avoid any injure to the operation staff
- Main lifting motor: with thermal protection and currency protection.
Painting:
Primer and finishing paint
Color: according to your demand.
Average thickness: about 100 microns.
ANSON Single Girder Crane Types

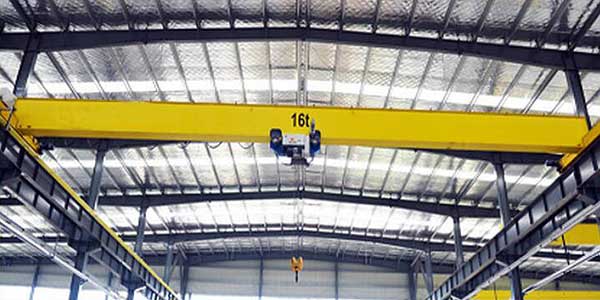

Single Girder Overhead Crane
- Lifting Capacity: 3.2t~16t
- Working Temperature: -25℃~40℃
- Standards: DIN, FEM, ISO

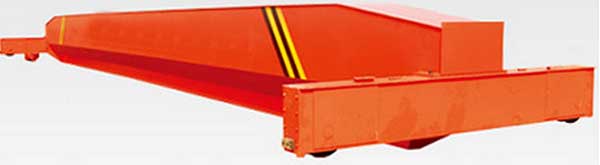

LD type single girder eot crane
- Lifting Weight: 1T-20T
- Span: 7.5m-28.5m
- Working Environment Temperature: -20 ℃ ~ 40℃
- Working Grade: A3-A4
- Control: electric control

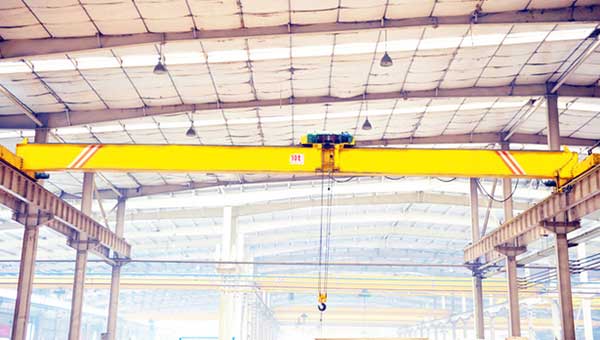

LDP type electric single girder crane
- Working Environment Temperature: -20℃~+40℃
- Rated Load: 3T~10T
- Span: 7.5M~22.5M
- Working Grade: A3, A4

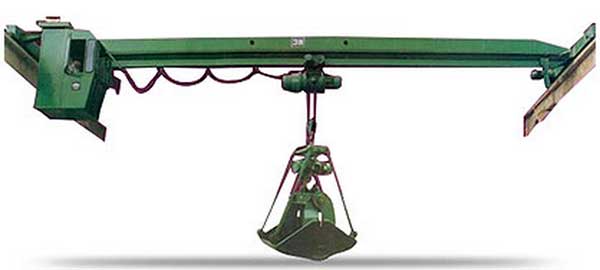

LDZ type single girder eot crane
- Lifting Capacity: 2~10T
- Span: 4.5~28.5M
- Working Environment Temperature: -20 c ~+40 c
- Control: electric control

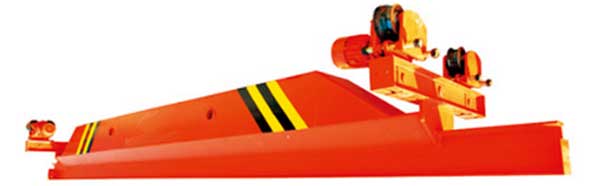

LX type single girder eot suspension crane
- Lifting Weight: 0.5T-10 T
- Span: 3-16m
- Working Environment Temperature: -20℃~+40℃
- Control: electric control

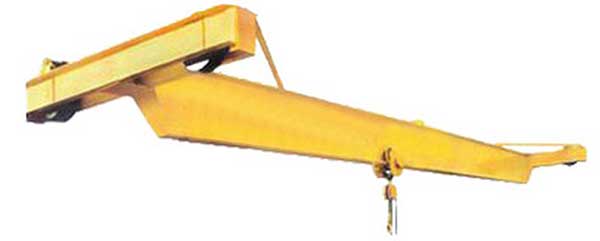

SL Manual single girder bridge crane
- Weight: 0.5T~10T
- Working Environment Temperature: above -20℃
- Control: manual control
And more information about single girder bridge crane, please look at: http://www.industrycrane.com/products/single-girder-bridge-crane.html
