wall jib crane

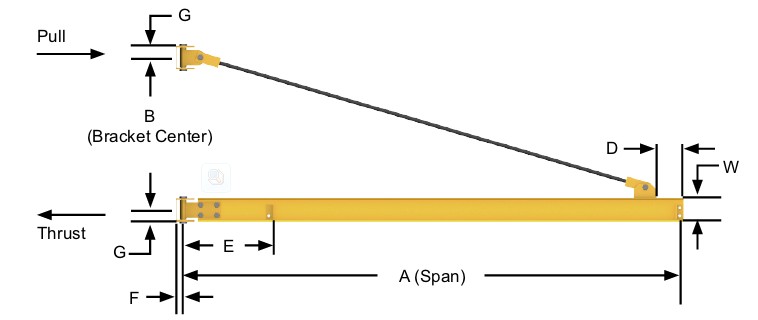

The Wall JIB Crane is composed of a vertical mast mounted to 2 brackets on a wall or vertical building beam with a boom that cantilevers out, perpendicular from the wall at the top.
Wall JIB Crane Specialist
With a energy saving electric hoist, Wall Jib Cranes possesses the following features: simple operation, reliable running and easy maintenance. It is widely used in machineing workshop, production line of workpiece lifting and other occasions. During the operation, via a reduction gear to drive rotary arm or hand pushing or pulling heavy objects empty ring to lift object. The largest advantage of Wall JIB Crane is that it can be mounted directly on the wall or column, and it can also be installed on the machine. Eliminating the need to take up any floor space, installation is simple, from the weight of 0.25t-5t.
Features of Wall JIB Crane:
- Capacities from 1/4 ton to 5 tons
- Spans to 33 feet
- Control: manual control or electric control
- Requires very little head room and exerts less force on the structure it is mounted to
- Requires a structurally adequate wall or column to support the jib, and needs sufficient clearance above the boom
- Main structure: cantilever, slewing device and electric chain hoist
- Operation Control: power button
Part of the specification:
Type |
Ratedlifting capacity t |
L inch |
R2 inch |
R1 inch |
H inch |
---|---|---|---|---|---|
BZQ0.25 | 0.25 | 212 | 197 | 10 | 56 |
BZQ0.5 | 0.5 | ||||
BZQ1 | 1 | 212 | 12 | 57 | |
BZQ2 | 2 | 250 | 230 | 18 | 61 |

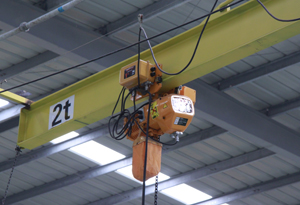

The Details of Wall JIB Crane
