Jib Crane
An Introduction to JIB Crane
Jib crane is mainly used pitching rotation around the vertical axis to lifting goods, with features of flexible action to meet the loading requirements. Floor mounted crane, potable articulated crane and wall JIB crane are several top JIB cranes. Floor mounted crane is fixed directly on the dock or pier base library field, and can only work in situ. Portable jib crane runs along the surface of the track or residence, the main line of cranes are tire cranes, crawler cranes and gantry cranes. The various JIB cranes are installed on a dedicated machine on the derrick barge, widely used in ocean, river ports and port construction loading doors and other work.
This type of crane consists of a pivoting head and boom assembly which carries a hoist and trolley unit. The pivoting head is supported either by a floor-mounted mast providing 360 degree boom rotation or by an existing building column which provides 180 degrees of boom rotation.
Learn more information about Jib Crane, please click HERE.
Best JIB Cranes for Sale
The Features of JIB Crane
- Capacities to 10 tons
- 360 °or 180° rotation
- Motorized or manual rotation
- Complete units or money-saving kits
- Baseplate, pipe, wall or column mounted systems
- Simpler and less expensive than bridge or gantry
- Precise spotting for light loads (e.g. a few hundred pounds or less)
JIB Crane Unique Design
ANSON Jib Crane Types

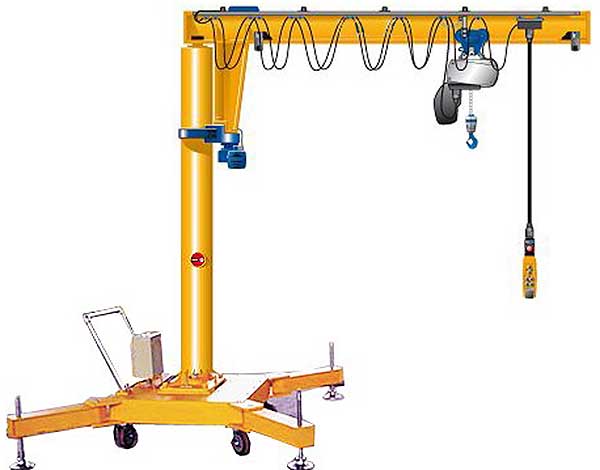

Portable Jib Crane
- Load Capacity: 0.25t, 0.5t, 1t, 2t, 3t, 5t
- Rotation Angle: 180 °, 270 °, 345 °, 360 °
- Control: electric rotation and manual rotation.

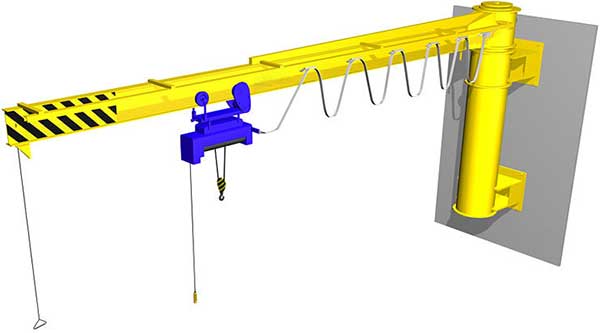

Wall Jib Crane
- Control: manual control or electric control
- Main structure: cantilever, slewing device and electric chain hoist
- Operation Control: power button

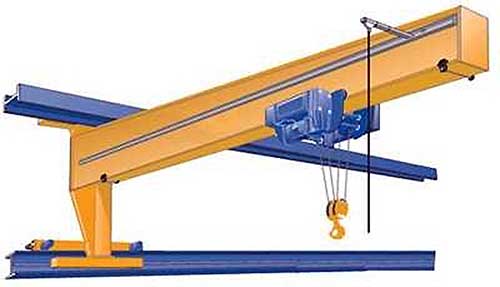

Wall Traveling Jib Crane
- Main Girder Type: box girders, and truss girder
- Advantages: save workplace space, work deftly
- Cantilever Types: fixed cantilever and rotate cantilever

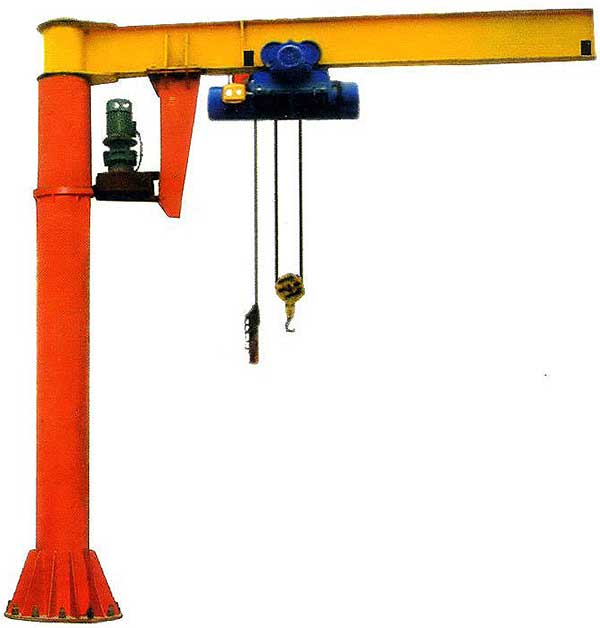

Floor Mounted Jib Crane
- Application: heavy lifting in factories, workshops production lines, assembly lines, machine tools, warehouses, docks.
- Control: manual rotation or electric rotation
