gantry crane

Gantry crane, bridge crane and overhead crane, are all types of cranes which lift objects by a hoist which is fitted in a hoist trolley and can move horizontally on a rail or pair of rails fitted under a beam.

Gantry crane is the horizontal leg of the bridge to constitute a bridge gantry crane. This crane rail on the ground, is mainly used in open storage yard, docks, power plants, ports and railway stations and other places for cargo handling and installation.

Gantry crane are particularly suited to lifting very heavy objects and huge gantry cranes have been used for shipbuilding where the crane straddles the ship allowing massive objects like ships' engines to be lifted and moved over the ship.

Gantry Crane Manufacturer

Working condition:

Working temperature: -25°~40°
Power source: 3ph, 380v, 50HZ or other under customer requirement.
Working duty: A5-A7
Control model: cabin room, remote control and both

• Up to 450 Ton Capacity
• Up to 197 Feet Span

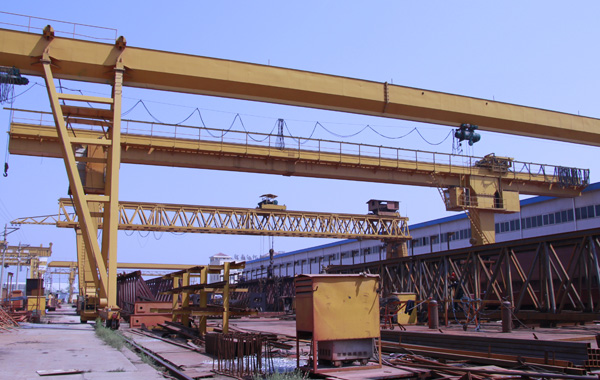

Gantry Crane for Sale

Safety protection:

• Overload protection.
• Main lifting motor with thermal protection.
• Hooks with latch.
• Rubber buffers.
• Protective earthling.
• Crane switch and travel and end switch.
• Emergency switch can stop all movement when any dangerous happened.
• Sub-assemblies characteristics are tested before assembly.
• All crane must be pre-assembled and tested before leaving factory and offer the certification of test.

ANSON Gantry Crane Series

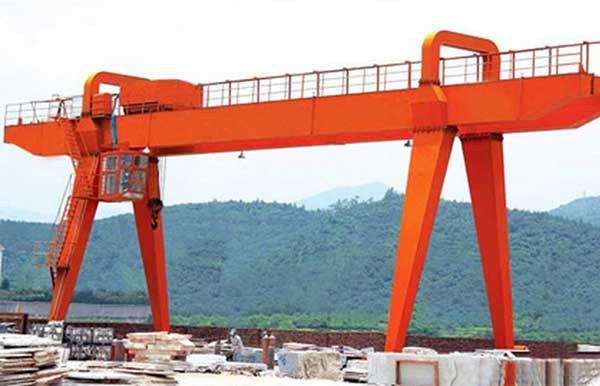

A Frame Gantry Crane

• Application: open storage, along the railway to load, unload, lift and handle equipment
• Lifting capacity with MGH truss structure: 5t~50t
• Lifting capacity with boxes-MG structure: 5t~320t

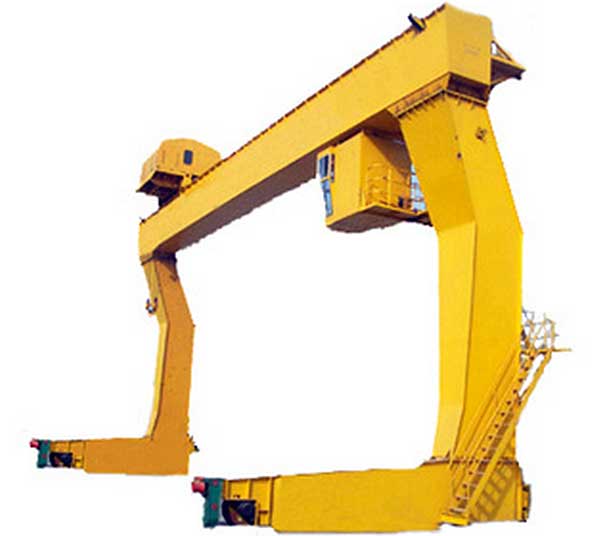

L Type Single Girder Gantry Crane

• Application: open storage, along railway to handle equipment
• Lifting capacity: 5t~50t
• Advantages: no space restriction during long transportation, reduce total height

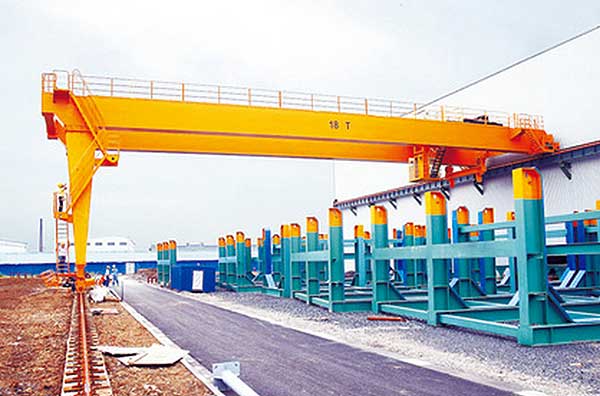

Semi Gantry Crane

• BMG double girder semi gantry crane
• Electric hoist semi gantry crane

Heavy Duty Gantry Crane

• Application: highway construction, bridges, power factory
• Girder Structure: single girder or double girder
• Lifting Mechanism: winch

U Frame Double Girder Gantry Crane

• Application: containers, bulk goods handling in open storage, railway operations
• Advantages: eliminate the saddle, reduce the machine height

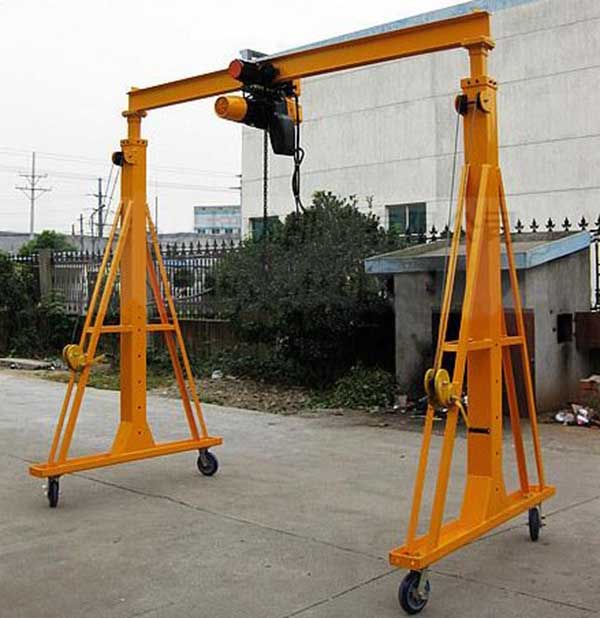

Light Gantry Crane

• Application: substitute of cantilever crane, warehouse and workshop without power supply
• Lifting Weights: within 2,000 kg
• Design Standards: national standard and non-national standard

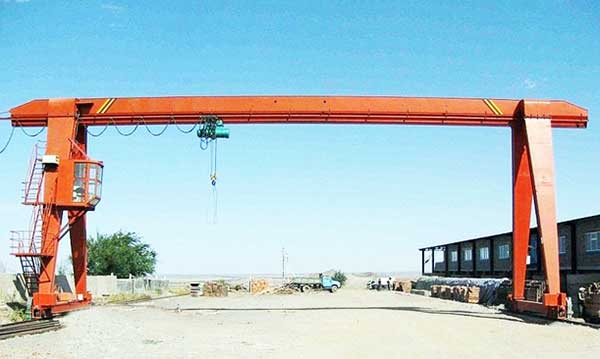

Complement of Electric Hoist Gantry Crane

• Lifting Capacity of Single Main Girder: 1t~20t
• Lifting Weight of Double Main Girder: 1t~50t
• Applicable Span: 12m~30m
• Working Environment Temperature: -20℃~ +40℃
