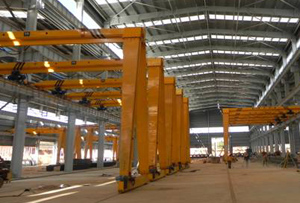

semi gantry crane

Anson semi gantry crane is perfect combined advantages of overhead crane & gantry crane, new kind crane, which could be used in outdoor and indoor both. We design semi-gantry cranes to comply with customer's specifications. Often a semi-gantry crane is an economic solution in a workshop or yard. Taking advantage of existed objects, like wall, horizonal pillar and house, semi gantry crane or half gantry crane cost you less, nearly half of the complete gantry crane, which is one reason why it is so popular at home and abroad.

The semi gantry crane is equipped with reasonable structure, favorable performance, smooth staring and stopping. Safe and reliable traveling, low noise, commodious cabin with good view, convenient maintenance, electricity save , excellent exchangeability for parts and components provide you a wonderful working condistion. Contact us RIGHT NOW to know more.

Features of Semi Gantry Crane:

• Single or double speed of the electric hoisting speed.
• Three control modes: pendent line with press button control ,remote control or cabin control.
• It should be informed whether using indoor or outdoor, to fix windproof and rainproof devices.
• The other feasible configuration user proposes.

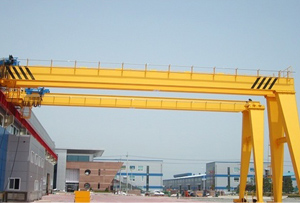

Working Condition of Semi Gantry Crane:

• Up to 260 MT capacity
• Up to 180 Feet span
• Working temperature: -25°~40
• Power source: 3ph, 380v, 50HZ or other under customer requirement.
• Working duty: A5-A7
• Control model: cabin room, remote control and both

Safety Protection:

1. Overload protection.
2. Main lifting motor with thermal protection.
3. Hooks with latch.
4. Rubber buffers.
5. Protective earthling.
6. Crane switch and travel and end switch.
7. Emergency switch can stop all movement when any dangerous happened.
8. Sub-assemblies characteristics are tested before assembly.
9. All crane must be pre-assembled and tested before leaving factory and offer the certification of test.

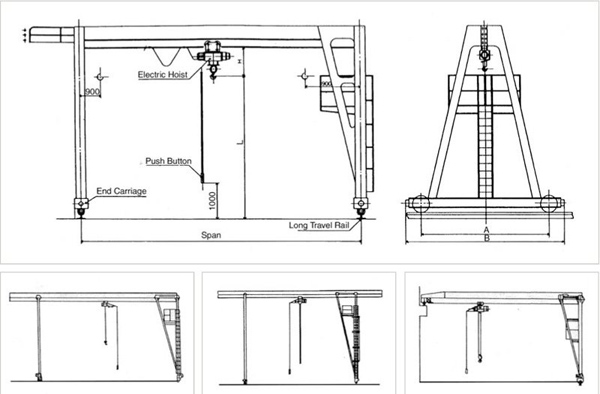

ANSON Semi Gantry Crane Types

BMG double girder semi gantry crane

• Application: factories, warehouses within or close to the factory
• Lifting Capacity: 5t~40t
• Working Level: A5,A6

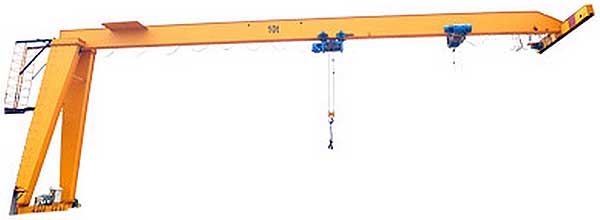

Electric hoist semi gantry crane

• BMH------Single girder semi gantry crane with electric hoist
  rated lifting weight 0.5t~16t
• BMH ⅰ-----Single column semi gantry crane with electric hoist
  rated lifting weight 0.5t~5t
• BMHN-----European-style semi gantry crane
  rated capacity 0.5t~10t
