Balance Crane
Anson PJ type balance crane is a small and medium-sized mechanical lifting equipment. It runs four bar linkage mechanism principle, using manual and motorized simple cooperate to form a composite movement to carry load, which is according to the requirement of stable to stay in operation interval to any position.
Thanks to its exquite size and portable operation, it is widely used in the assembly and repair process of hoisting transport, production line of articulation, converting station and furnace workshop.

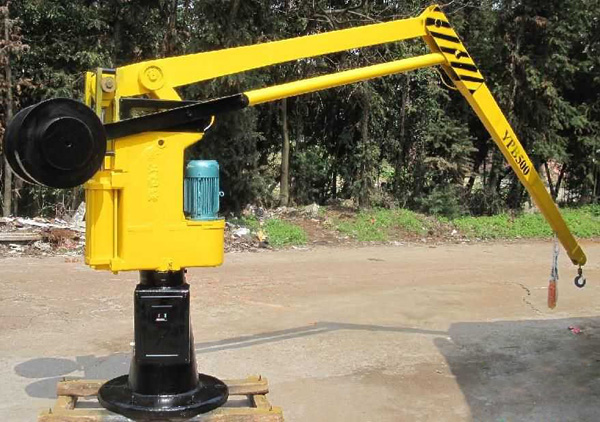

Buy Mobile Balance Crane from China
With a button actuating motor, PJ/PAJ type balance crane operation is very simple.Manually push and pull the hanging, hanging or direct stalls, the horizontal moving, or around the post and rotated to the required lifting working position.
Features of Balance Crane:
- Capacity: Up to 2000 KG
- Max. lifting Height: 1.5M
- Level length: 1.9-2.1M
- Rotated angle: 340 degree

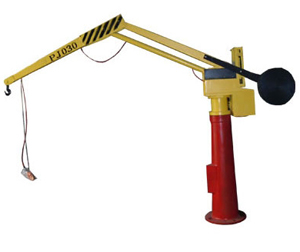

The Specification of Portable Balance Crane:
| Type | PJ005 | PJ010 | PJ020 | PJ030 | PJ040 | PJ050 | PJ060 |
|---|---|---|---|---|---|---|---|
| Max lifting weight(kg) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| Max lifting height(mm) | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 |
| Starting level(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Lifting range(mm) | 1500 | 1500 | 1500 | 1500 | 1500 | 2000 | 2000 |
| Max swing radius(mm) | 2500 | 2500 | 2500 | 2500 | 2500 | 3200 | 3200 |
| Min swing radius(mm) | 580 | 580 | 770 | 770 | 770 | 1000 | 1000 |
| Level amplitude(mm) | 1920 | 1920 | 1730 | 1730 | 1730 | 2200 | 2200 |
| Turn angle(0°) | 345 | 345 | 345 | 345 | 345 | 345 | 345 |
| Lifting speed(m/min) | 6.14 | 6.14 | 5.44 | 5.52 | 5.56 | 5.08 | 5.08 |

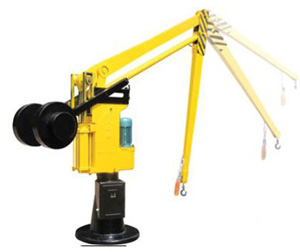

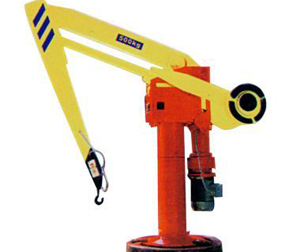

Various Balance Cranes for Sale
